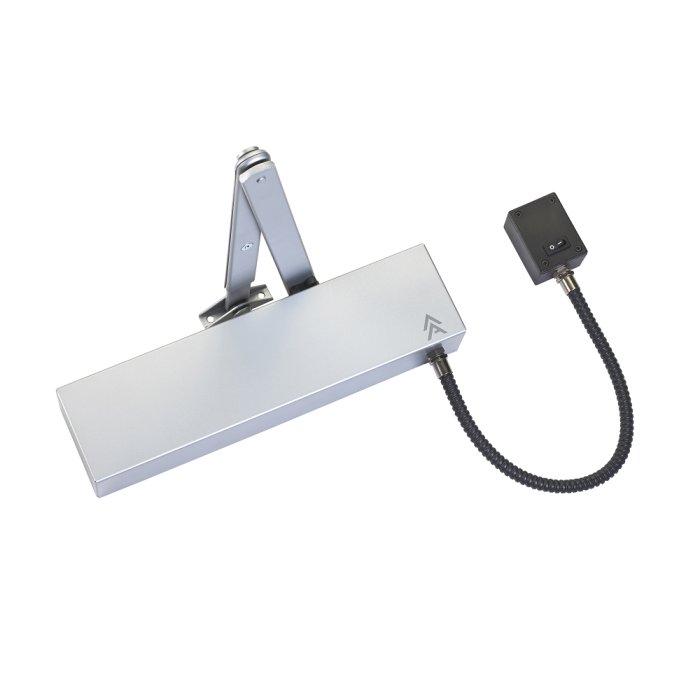

Arrow 623U Electro Magnetic Door Closer Silver with Black Arm
Main image
Click to view image in fullscreen
![]()
CE Marked (fig.1 only) Hold Open or Free Swing
In stock
Delivery Information
| Delivery Time Frame | Delivery Information |
| Next Working Day By 1PM | When an order is placed by 3pm for next working day on certain items |
| Standard Delivery | Usually delivered in 2 to 4 working days |
| Delivery Charges | |
| UK Mainland | Prices start at £6.50 for small items, £9.50 for medium and £20 for large/long items |
| Scottish Highlands & Islands, Northern Ireland & Ireland | Prices from £30, please see our delivery page for more info. |
View Delivery Information
£221.09
Incl. VAT
£184.24
Excl. VAT
Incl. VAT
Excl. VAT
Incl. VAT
Excl. VAT
Price is for/per each
See our full range:
Description
CE Marked, Power size 3, Suitable for Doors upto 60kg and 950mm Wide When Fitted to Pull Side (Figure 1)
The Arrow Electromagnetic series is the ultimate solution for fire door safety and Ease of Access.
Linked to the buildings Fire Detection system, in either Hold Open or Swing Free mode the closers aid flow of traffic throughout the building, but shut automatically upon first detection of a fire.
The Hold Open option allows Barrier Free Access for all inhabitants of a building, whilst the Swing Free technology allows the door to function as if no door closer was fitted i.e. there is virtually no opening resistance.
Specification: Electromagnetic Standard Arm Closer (links to Fire Detection System); Hold Open or Swing Free Configuration; Universal Fitting - Can be installed in Pull Side (Figure 1), Push Side (Figure 6) or Transom Mount (Figure 61)*; Adjustable Latching & Speed as standard
Standards
BSEN 1155 (Electrical)
BSEN 1154 (Mechanical)
BSEN 1634 (Fire Test)
BS8300 (Ease of Access)
Specification
| Finish | Silver |
|---|---|
| Type | Overhead |
| Power sizes | 3 |
| Finish | Silver Sprayed |
| CE Certified | Yes |
| Certifire Approved | Yes |
| Application | Universal |
| Arm Assembly | Projecting Arm |
| Closing Speed | Variable |
| Latching Action | Yes |
| Stand Open | Yes |
| Back Check | No |
| Delayed Action | No |
